Sample Application
Our sample applications are for help learning how to code with the MedWand Developer Suite. They should not be used for demonstration or production.

Configuration

Download a sample application from the MedWand GitHub Repository.

Open the solution for the cloned project with the IDE of your choice.

Edit the "App.xaml.cs" file with the values from your ".lic" file.

  1. Paste your "LicenseString" into the "MwSdkLicense" string.
  2. Paste your "PublicKey" into the "MwSdkPublicKey" string.
public static readonly string MwSdkLicense = @"";
public static readonly string MwSdkPublicKey = @"";

First Run

Plug your MedWand device into the USB-C port on your computer and run the application.

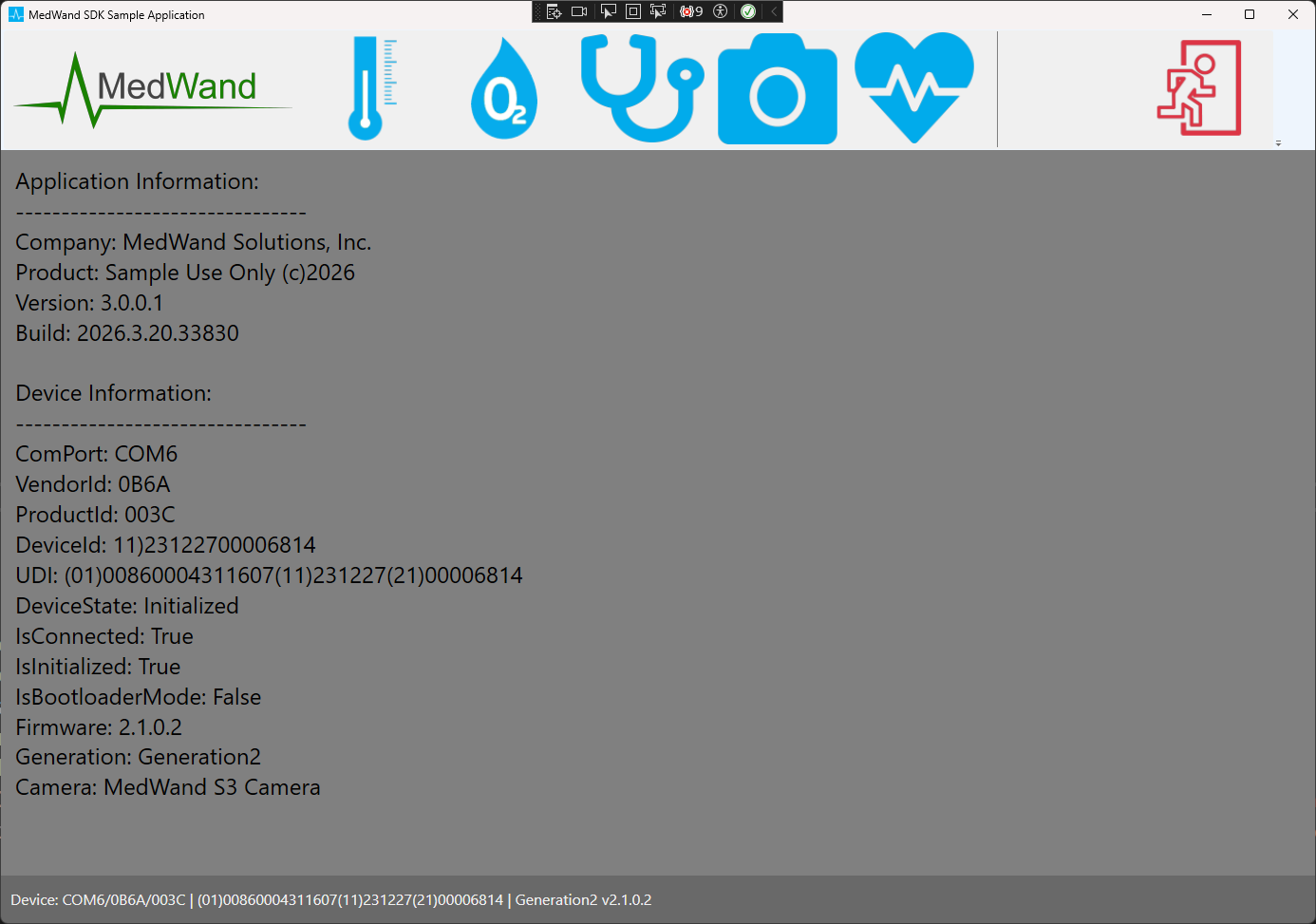

You should see a window similar to the image below. If you do not, check that your MedWand device is plugged in and

  • Your MedWand device is plugged in.
  • Verify that it is enumerated in the operating system.
  • Verify that you license key values are correct.

Workflow and Code Review

Working from left to right across the toolbar are the following sensors.

  1. Thermometer
  2. Pulse Oximeter
  3. Stethoscope
  4. Camera
  5. ECG

While reviewing the sample code, you will notice we provide different "UI Patterns". This is intentional to help you work within the pattern you might be using.

Getting Started
  1. Create an instance of the MedWandController
    var _medWandController = new MedWandController();
    _medWandController.Construct(Settings.MwSdkLicense, Settings.MwSdkPublicKey);
    if (!_medWandController.IsLicenseValid) throw new Exception("No valid license");
  2. Connect to the MedWand
    _medWandController.Connect();
    if (!_medWandController.IsConnected) throw new Exception("MedWand not found");
    _medWandController.DeviceError += MedWandController_MedWandDeviceError;
    _medWandController.DeviceStateChanged += MedWandController_DeviceStateChanged;
  3. Initialize the MedWand
    _medWandController.Initialize();
    if (!_medWandController.IsInitialized) throw new Exception("MedWand not initialized.");
    _medWandController.Configure(_ecgView.GridContainer); // If you do not plan to use the ECG, you can pass 'null'
    _medWandController.ReadingStateChanged += MedWandController_ReadingStateChanged;
    _medWandController.ReadingReceived += MedWandController_ReadingReceived;
  4. Cleanup and dispose

    if (_medWandController != null)
    {
         _medWandController.StopSensor();
         _medWandController.DeviceError -= MedWandController_MedWandDeviceError;
         _medWandController.DeviceStateChanged -= MedWandController_DeviceStateChanged;
         _medWandController.ReadingStateChanged -= MedWandController_ReadingStateChanged;
         _medWandController.ReadingReceived -= MedWandController_ReadingReceived;
         _medWandController.Dispose();
    }
    _medWandController = null;
Working with Sensors

Thermometer

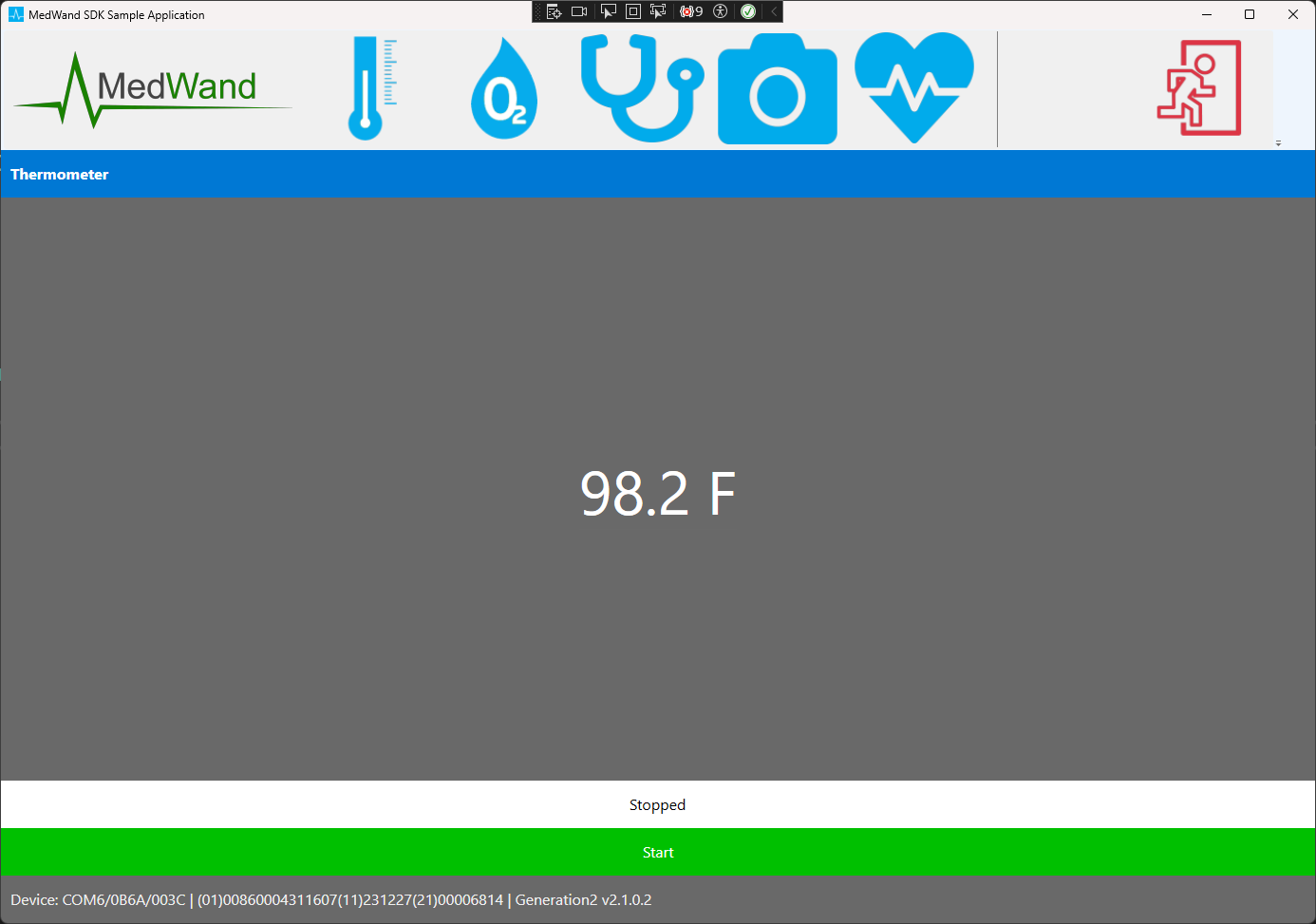

This is a sample of what a thermometer UI might look like.

Start the Thermometer

if (_controller.StartThermometer())
{
     _medWandController.ReadingStateChanged += MedWandController_ReadingStateChanged;
     _medWandController.ReadingReceived += MedWandController_ReadingReceived;
}
else
{
     // Handle the failure to start the sensor
}

Handle the MedWandReading object

public void OnReadingReceived(MedWandReading reading) {
     if (_reading == null) return;
     string FormatTemp(string raw) => string.IsNullOrEmpty(raw) || raw == "Reading" ? "--" : $"{raw} F";
     TempOutput = $"{FormatTemp(_reading.TempObject ?? string.Empty)}"; // TempOutput is a bound getter/setter
}

Stop the Thermometer

_controller.StopSensor();
_medWandController.ReadingStateChanged -= MedWandController_ReadingStateChanged;
_medWandController.ReadingReceived -= MedWandController_ReadingReceived;

Pulse Oximeter

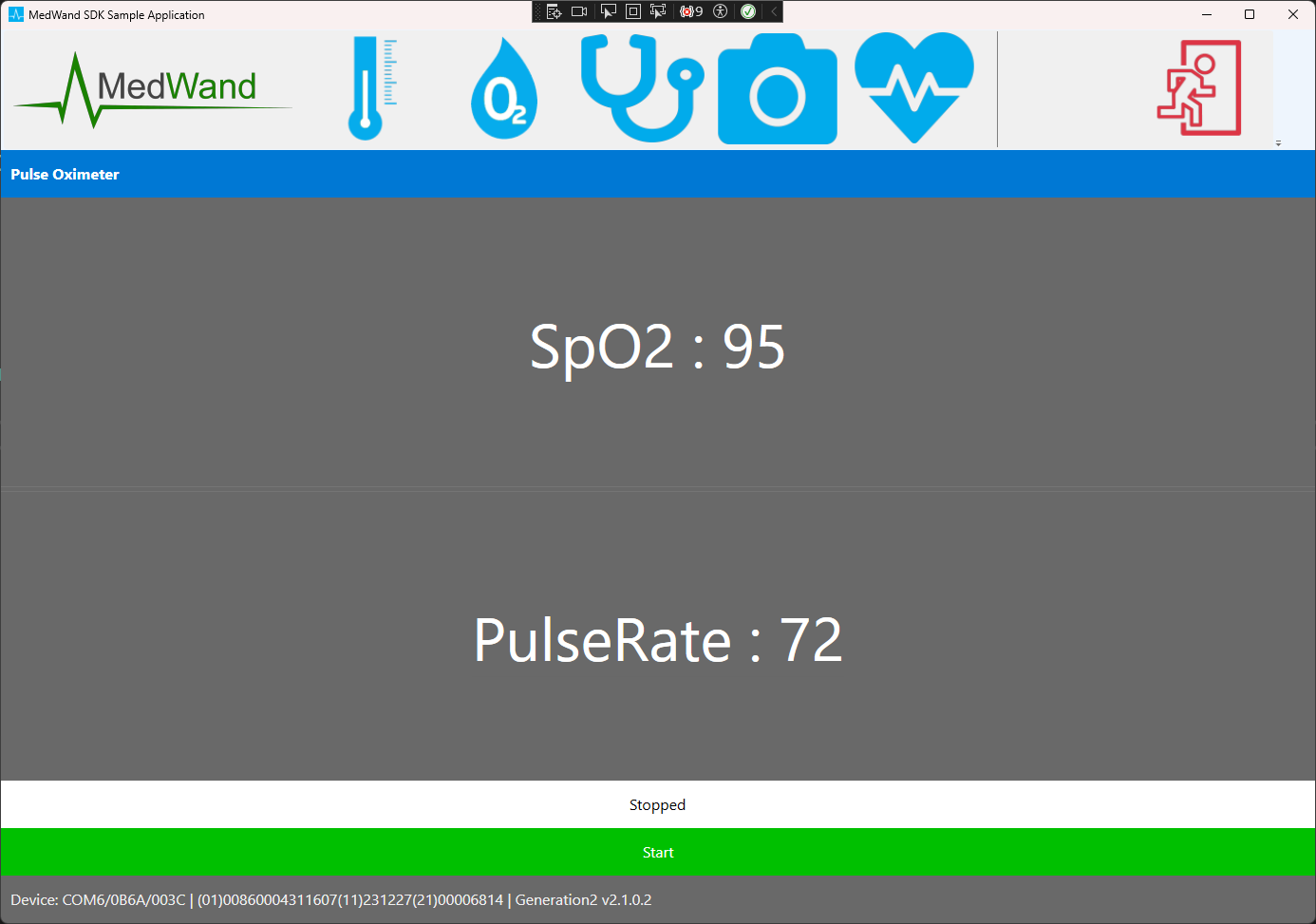

This is a sample of what a pulse oximter UI might look like.

Start the Pulse Oximeter

if (_controller.StartPulseOximeter())
{
     _medWandController.ReadingStateChanged += MedWandController_ReadingStateChanged;
     _medWandController.ReadingReceived += MedWandController_ReadingReceived;
}
else
{
     // Handle the failure to start the sensor
}

Handle the MedWandReading object

public void OnReadingReceived(MedWandReading reading) {
     if (_reading == null) return;
     SpO2Output = $"SpO2 : {_reading.Spo2}"; // SpO2Output is a bound getter/setter
     PulseRateOutput = $"PulseRate : {_reading.PulseRate}"; // PulseRateOutput is a bound getter/setter
}

Stop the Pulse Oximeter

_controller.StopSensor();
_medWandController.ReadingStateChanged -= MedWandController_ReadingStateChanged;
_medWandController.ReadingReceived -= MedWandController_ReadingReceived;

ECG

If you pass 'null' to '_medWandController.Configure(null);' during 'Initialize the MedWand' section, you will not be able to use the ECG functionality.

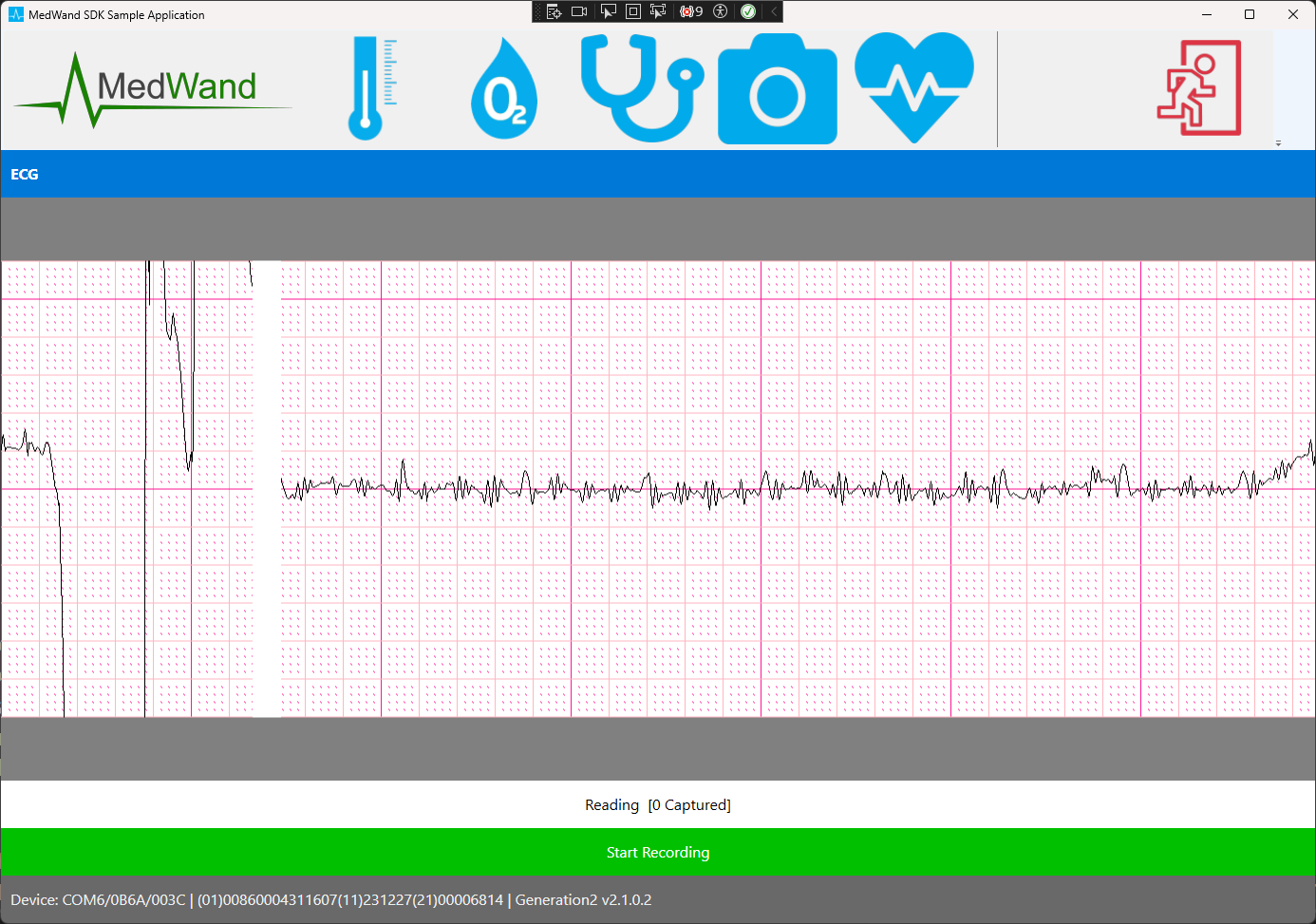

This is a sample of what a ecg UI might look like.

Start the ECG

if (_controller.StartEcg())
{
     _medWandController.Ecg.RecordedStripReady += (sender, bytes) =>
     {
          File.AppendAllText("captures.txt", $"[{DateTime.UtcNow:O}] -> {_medWandController.EcgBmpFromCapture(bytes)}\n");
          _captured++;
     };
     _medWandController.ReadingStateChanged += MedWandController_ReadingStateChanged;
     _medWandController.ReadingReceived += MedWandController_ReadingReceived;
}
else
{
     // Handle the failure to start the sensor
}

Handle the MedWandReading object

public void OnReadingReceived(MedWandReading reading) {
     if (_reading == null) return;
     // The SDK will draw the ECG for you on the container you provided in the '_medWandController.Configure()' call during initialization.
}

Start recording the ECG

_medWandController.StartRecording();

Stop recording the ECG

_medWandController.StopRecording();

Stop the ECG

_controller.StopSensor();
_medWandController.ReadingStateChanged -= MedWandController_ReadingStateChanged;
_medWandController.ReadingReceived -= MedWandController_ReadingReceived;
_medWandController.Ecg.RecordedStripReady -= (sender, bytes) =>
{
     File.AppendAllText("captures.txt", $"[{DateTime.UtcNow:O}] -> {_medWandController.EcgBmpFromCapture(bytes)}\n");
     _captured++;
};

Stethoscope

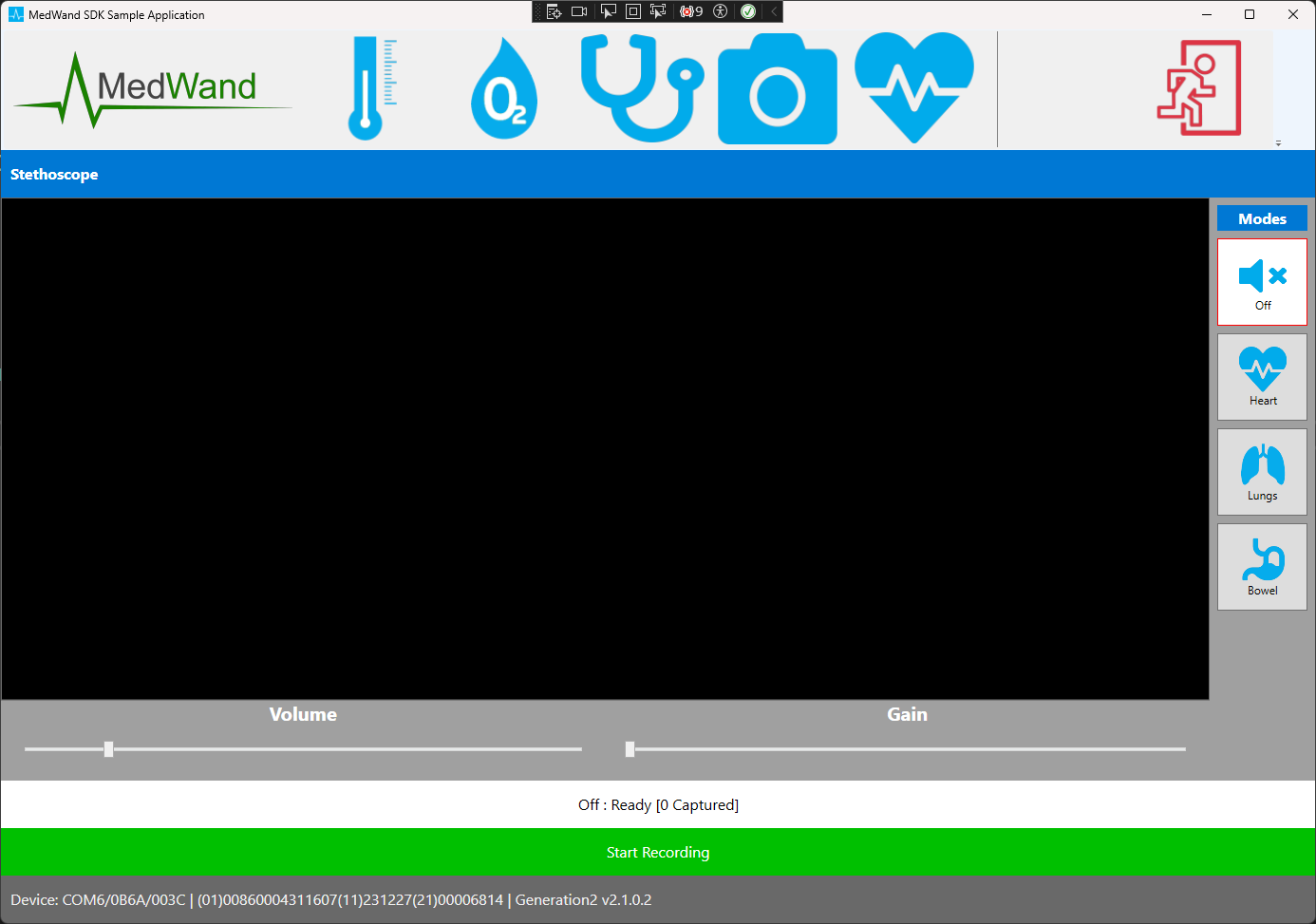

This is a sample of what a stethoscope UI might look like.

Start the Stethoscope

_medWandController.SetStethoscopeMode(stethoscopeMode, null);
_medWandController.Stethoscope.RecordedFramesReady += (sender, bytes) =>
{
     File.AppendAllText("captures.txt", $"[{DateTime.UtcNow:O}] {_medWandController.StethoscopeModel} {StethoscopeMode} -> {_medWandController.StethoscopeWavFromCapture(bytes)}\n");
     _framesCaptured++;
};

Start recording the Stethoscope

_medWandController.StartRecording();

Stop recording the Stethoscope

_medWandController.StopRecording();

Stop the ECG

SetStethoscopeMode(MicrophoneModes.Off);
_medWandController.Camera.RecordedFramesReady += (sender, bytes) =>
{
     File.AppendAllText("captures.txt", $"[{DateTime.UtcNow:O}] {_medWandController.StethoscopeModel} {StethoscopeMode} -> {_medWandController.StethoscopeWavFromCapture(bytes)}\n");
     _framesCaptured++;
};

Camera

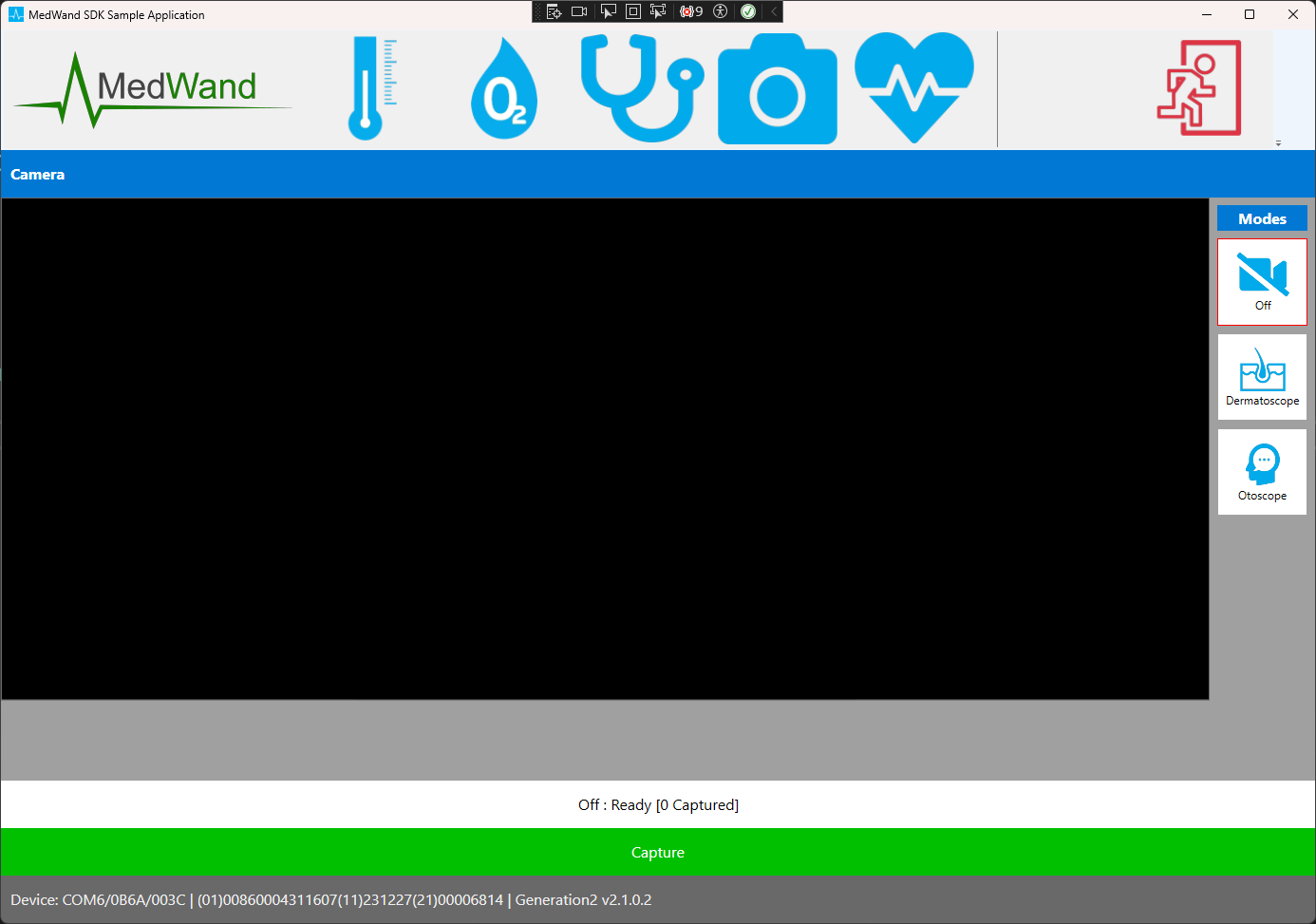

This is a sample of what a camera UI might look like.

Start the Camera

_medWandController.SetCameraMode(_videoPreview, CameraModes.Dermatoscope);
KeyDown += (sender, key) =>
{
        switch (key)
        {
            case Key.Left:
                _medWandController.CameraMove(-1, null);
                return true;
            case Key.Right:
                _medWandController.CameraMove(1, null);
                return true;
            case Key.Up:
                _medWandController.CameraMove(null, -1);
                return true;
            case Key.Down:
                _medWandController.CameraMove(null, 1);
                return true;
            case Key.PageUp:
                _medWandController.CameraZoom(1);
                return true;
            case Key.PageDown:
                _medWandController.CameraZoom(-1);
                return true;
            case Key.Enter:
                _medWandController.CameraReset();
                return true;
        }
}
_medWandController.Camera.RecordedFrameReady += (sender, bytes) =>
{
     File.AppendAllText("captures.txt", $"[{DateTime.UtcNow:O}] {_medWandController.CameraModel} {CameraMode} -> {_medWandController.CameraBmpFromCapture(bytes)}\n");
     _framesCaptured++;
};

Capture a frame from the Dermatoscope or Otoscope

_medWandController.StartRecording();

Stop the Camera

_medWandController.SetCameraMode(_videoPreview, CameraModes.Off);
_medWandController.Camera.RecordedFrameReady -= (sender, bytes) =>
{
     File.AppendAllText("captures.txt", $"[{DateTime.UtcNow:O}] {_medWandController.CameraModel} {CameraMode} -> {_medWandController.CameraBmpFromCapture(bytes)}\n");
     _framesCaptured++;
};
Reference Documentation
Reference Documentation for .net WPF DECL (Device Encryption Communication Library)
